Touchless Keyless Rfid Access Control Key Card Hotel Door Lock With
Management Software System
1. Product Feature
► 2 unlocking ways: card and key
► Suitable for door thickness: 1 3/8" to 2" (35~50mm)
► Standard 2 3/8" backset (2 3/4" backset is available upon
request)
► Requires 4 AA 1.5V alkaline batteries (not included)
► Service life of battery: approx. 20,000 times (up to one year)
► It will alarm for low power supply
2. Product Description
We are a remarkable trader, importer and supplier of an excellent
quality Electronic Hotel Door Locks. The locks offered by us are mainly used in
hotels. Available in diverse technical specifications to meet
clients specific needs, these locks are manufactured with high
precision by making
use of superior quality raw material and the latest technology
under the vigilance of our vendors. In addition, our clients can
avail these locks from
us at rock bottom price.
3. Product Parameters
| Product Name | stainless steel Door Lock |
| Model Number | DSR100B |
| Color | Black/ Silver/ Gold/ Red Bronze |
| Size | 240*78mm |
| Ways to Unlock | Card, Mechanical Key |
| Card Type | Temic T5557, or Mifare-1 card S50 |
| Mortise | ANSI Standard Mortise |
| System | Free Hotel Management System |
| Door Thickness | 38-48mm |
| Power Supply | 6V (4x AA Batteries) |
| Battery Life Span | Support 10,000 Times of Locking & Unlocking Operation |
| Working Temperature | -20℃-70℃ |
| Relative Humidity | 20%-90% |
| Warranty | 2 years |

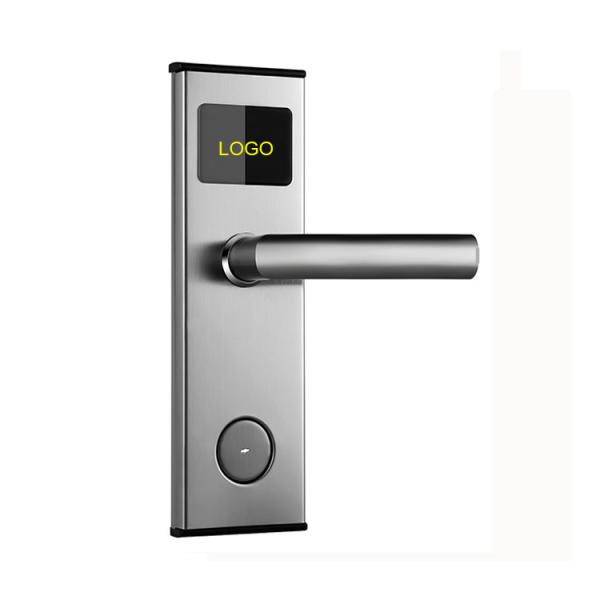

4. Product Image

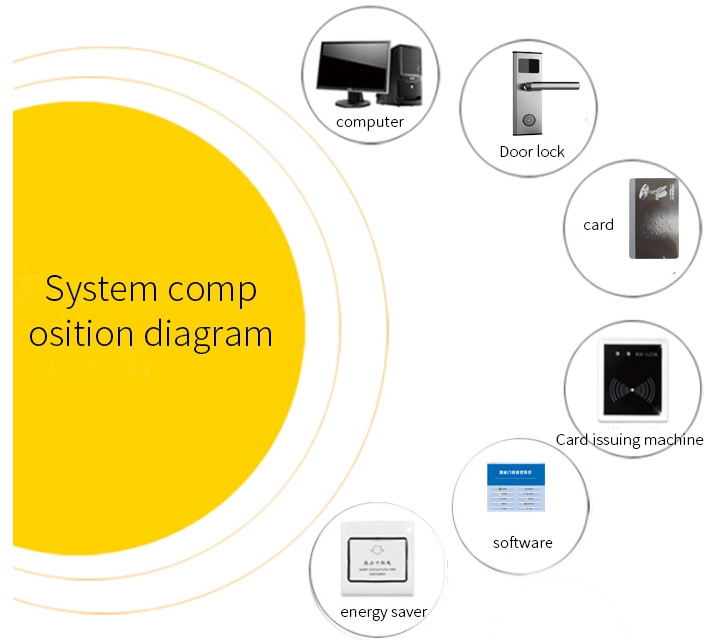

5. Hotel Lock System Details
| Basic components of hotel lock system include | |
| Software | Send you for free, work on window XP7, 8, 8, 9 |
| Computer | It is used to install lock management software, prepared by hotel |
| Card Encoder | Device for reading and encoding the card, USB port |
| Card | One lock need at least one card, for opening door |
| Lock | Install on the door, battery operated, advanced security
performance |
| Optional Components | |
| Energy-saving Switch | Device allow the card to turn on the lighting system of the room |
| Data Collector | It is used to collect the unlocking records from the locks and read
on the computer |
| Elevator/ Access Reader | Device for controlling the elevator or public access |
